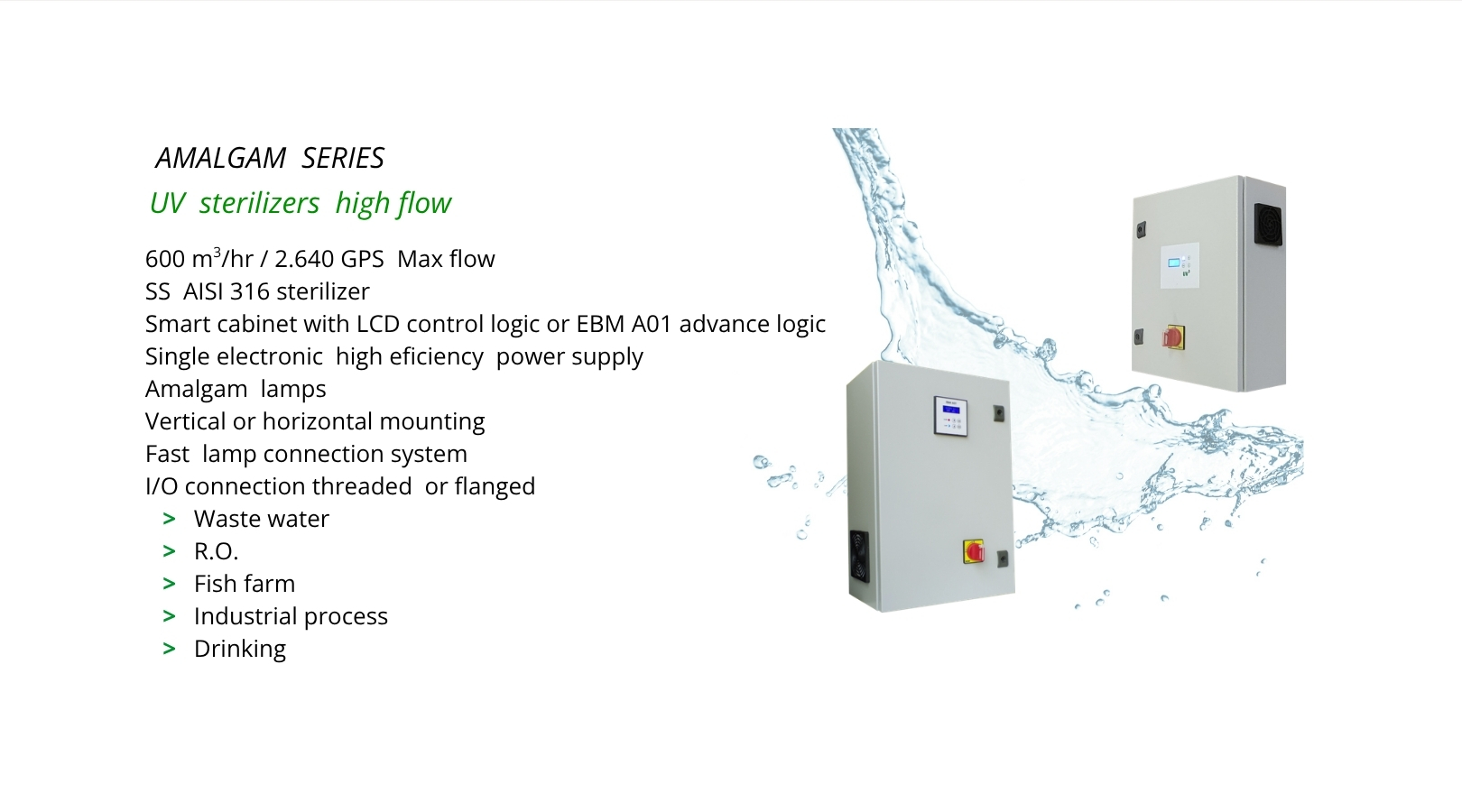

AISI 316 UV sterilizers for high flow rate application up to 600 m³/hr. Equipped with lamalgam lamps, enclosed in high quality quartz sleeves and managed by high efficiency electronic ballasts. Available as VERTICAL version managed by LCD cabinet powered by 200W lamps or HORIZONTAL version equipped with adavenced EBM A01 cabinet and 400W lamps. Optional sensor, standard or certified, compèlete feattures
FISH FARM installations need water to be treat ensuring absence of bacteria and fungi dangerous for fishes. With UV disinfection the goal is achieved without any chemical substance. Also WASTE WATER treatmeat needs UV sterilizaztion, before realese watere in the enviroment, without any chemical substance. In many INDUSTRIAL PROCESS, or installation of DRINKING WATER this type of sterilization is used to ensure water to be used without any bacteria or dangerous micro organism
VERTICAL SERIES
> 40 mJ/cm2 Max flow rate : 25,0 m3/hr - 110,0 GPM
> Lamp type : 1 x 200W UV-C amalgam lamp 14.000 hr
> Control logic : LCD display control panel
> Chamber size : H 1235 mm ; Ø 139 mm
> Connection : 2" threaded male
> Sensor optional : Standard UV and Temperature sensor
> I/O optional : Flanged DN50
> Item code : UV AM25
> 40 mJ/cm2 Max flow rate : 60,0 m3/hr - 264,0 GPM
> Lamp type : 2 x 200W UV-C amalgam lamp 14.000 hr
> Control logic : LCD display control panel
> Chamber size : H 1235 mm ; Ø 139 mm
> Connection : DN80 Flanged
> Sensor optional : Standard UV and Temperature sensor
> Item code : UV AM60
> 40 mJ/cm2 Max flow rate : 90,0 m3/hr - 396,0 GPM
> Lamp type : 3 x 200W UV-C amalgam lamp 14.000 hr
> Control logic : LCD display control panel
> Chamber size : H 1235 mm ; Ø 168 mm
> Connection : DN100 Flanged
> Sensor optional : Standard UV and Temperature sensor
> Item code : UV AM90
> 40 mJ/cm2 Max flow rate : 125,0 m3/hr - 550,0 GPM
> Lamp type : 4 x 200W UV-C amalgam lamp 14.000 hr
> Control logic : LCD display control panel
> Chamber size : H 1235 mm ; Ø 168 mm
> Connection : DN150 Flanged
> Sensor optional : Standard UV and Temperature sensor
> Item code : UV AM125

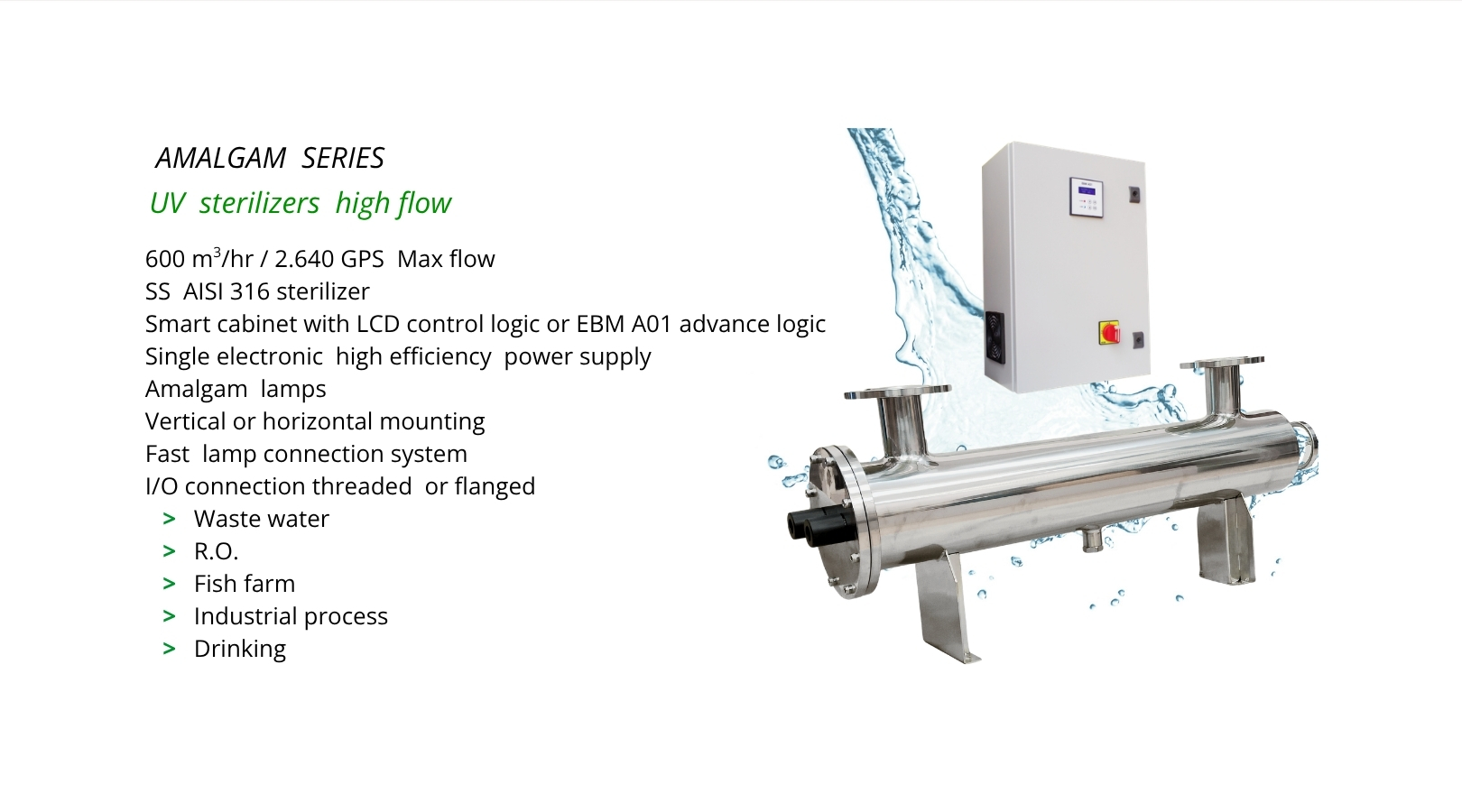

HORIZONTAL SERIES
> 40 mJ/cm2 Max flow rate : 100,0 m3/hr – 440,0 GPM
> Lamp type : 2 x 400W UV-C amalgam lamp 14.000 hr

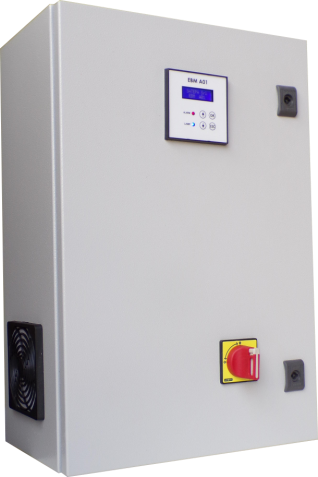

> Control logic - EBM A01 control panel
> Chamber size : L 1625mm ; Ø 139mm "U" shaped
> Connection : DN100 flanged
> Optional sensor : Standard UV and Temperature / certified UV
> System optionaql : Cleaning system
> Item code : UV HM100
> 40 mJ/cm2 Max flow rate : 250,0 m3/hr – 1.1000,0 GPM
> Lamp type : 4 x 400W UV-C amalgam lamp 14.000 hr
> Control logic - EBM A01 control panel
> Chamber size : L 1625mm ; Ø 168mm "U" shaped
> Connection : DN200 flanged
> Optional sensor : Standard UV and Temperature / certified UV
> System optionaql : Cleaning system
> Item code : UV HM250
> 40 mJ/cm2 Max flow rate : 400,0 m3/hr – 17600,0 GPM
> Lamp type : 6 x 400W UV-C amalgam lamp 14.000 hr
> Control logic - EBM A01 control panel
> Chamber size : L 1625mm ; Ø 219mm "U" shaped
> Connection : DN250 flanged
> Optional sensor : Standard UV and Temperature / certified UV
> System optionaql : Cleaning system
> Item code : UV HM400
> 40 mJ/cm2 Max flow rate : 600,0 m3/hr – 2640,0 GPM
> Lamp type : 8 x 400W UV-C amalgam lamp 14.000 hr
> Control logic - EBM A01 control panel
> Chamber size : L 1625mm ; Ø 273mm "U" shaped
> Connection : DN250 flanged
> Optional sensor : Standard UV and Temperature / certified UV
> System optionaql : Cleaning system
> Item code : UV HM600
