MONO  Series

DOMESTIC and POINT OF USE application

1,2 .. 5,0 m3/hr    –   5,3 .. 22,00 GPM

Against: Cryptosporidium, Giardia, E.Coli and Fecal Coliform.

High efficiency low pressure UV-C lamp (9.000 hours lifespan)

High quality quarts sleeves

“A” basic  electronic ballast plug or through cable

“D” smart LCD display logic UV³

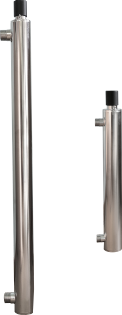

AISI 304 standard reactor, AISI 316 optional

UV Irradiance and Temperature sensor optional

  • 1,5 m3/hr  -  6,60 GPM  @ 30.000 µWsec/cm2
  • 1,2 m3/hr  -  5,28 GPM  @ 40.000 µWsec/cm2
  • 1 x 30W   UV-C low pressure lamps
  • 520 mm   max size
  • 3/4"   I/O  connection
  • EN  55022 ; EN  61000-3-2 ; EN 61000-4 ; EN  61347-1/A1 ; EN 61195 ; 2014/30/EU ; 2014/35/EU   compliance
  • Irradiance and Temperature sensor optional
  • UVC30A  with  ballast plug or through cable    Download  UVC30A
  • UVC30D  with control logic UV3      Download  UVC30D
  • 2,8 m3/hr  -  12,30 GPM  @ 30.000 µWsec/cm2
  • 2,4 m3/hr  -  10,60 GPM  @ 40.000 µWsec/cm2
  • 1 x 40W   UV-C low pressure lamps
  • 935 mm   max size
  • 1"   I/O  connection
  • EN  55022 ; EN  61000-3-2 ; EN 61000-4 ; EN  61347-1/A1 ; EN 61195 ; 2014/30/EU ; 2014/35/EU   compliance
  • Irradiance and Temperature sensor optional
  • UVC40A  with  ballast plug or through cable    Download  UVC40A
  • UVC40D  with control logic UV3      Download  UVC40D



  • 6,0 m3/hr  -  26,4 GPM  @ 30.000 µWsec/cm2
  • 5,0 m3/hr  -  22,0 GPM  @ 40.000 µWsec/cm2
  • 1 x 80W   UV-C low pressure lamps
  • 935 mm   max size
  • 1 ¼”   I/O  connection
  • EN  55022 ; EN  61000-3-2 ; EN 61000-4 ; EN  61347-1/A1 ; EN 61195 ; 2014/30/EU ; 2014/35/EU   compliance
  • Irradiance and Temperature sensor optional
  • UVC65D  with control logic UV3      Download  UVC65D



  • Plug ballast
  • Lamp cable1,5mt
  • 90 to 240 Vac power suplly
  • High efficiency lamp driver
  • Green/red led for lamp monitoring
  • EN 55022; EN 61000-3-2; EN 61000-4 compliance
  • Through cable version available
  • Audible beeper optional

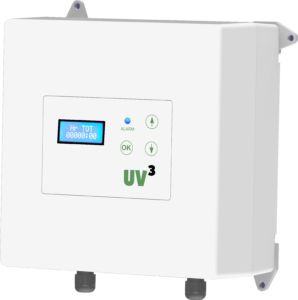

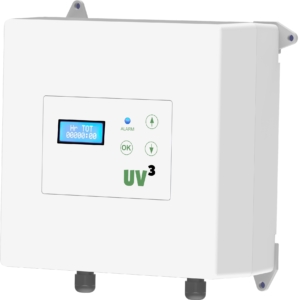

  • High efficiency electronic ballast
  • 230 Vac power supply (115Vac optional)
  • 2x8 character white/blue backlighted LCD display
  • Total and partial hour counter
  • Stand by button
  • REMOTE ON/OFF operation
  • Flux switch input
  • Solenoid valve managing
  • Customizable relay output
  • Lamp change counter
  • Free contact alarm relay
  • Powered alarm relay
  • Audible alarm optional
  • Sensor management (Irradiance and Temperature)
  • 4-20 mA output optional
