ELECTRONIC BALLASTS

12 to 500 W high efficiency standard power supply for UV-C lamps, suitable for low pressure vapor mercury and amalgam mercury lamps. The proprietary internal software allows the lamp to be driven with high efficiency and rated UV output power. Internal shut-down system ensures safety operations when a fault occurs, while preserving components from damages.

FREE CONTACT RELAY and LED can monitor the status of the lamp and optional photocoupler inputs are available for external command or 0-10V dimming.

12  ..  500  Watt power

Fix or Dimmable output

Free contact alarm relay

Green/Red monitoring led

4 pin lamps or 2 pin lamps

High efficiency electronics

Enclosed / Without enclosure
Ballasts 12 ... 100 Watt
Ballasts 100 ... 200 Watt
Ballasts 200 ... 500 Watt

Up to 16 lamps

Partial / Total hours counter

2×8 or 2×12 characters

4-20 mA output available

Free contact relay alarm

ON/OFF remote input

Alarm beeper optional

Basic logics without enclosure
Advance logics in plastic box
UV Monitors

CONTROL  LOGICS

DISPLAY CONTROL LOGICS for UV systems, with hours counting and lamp monitoring. They can be connected to irradiance and temperature sensors for a complete management of the installation.

BASIC logic, without enclosure, and advanced SMART logic enclosed in a plastic box, with optional 4-20 mA output for irradiance and temperature.

UV MONITOR for certified sensors with alarm relay and setting menu.

SENSORS

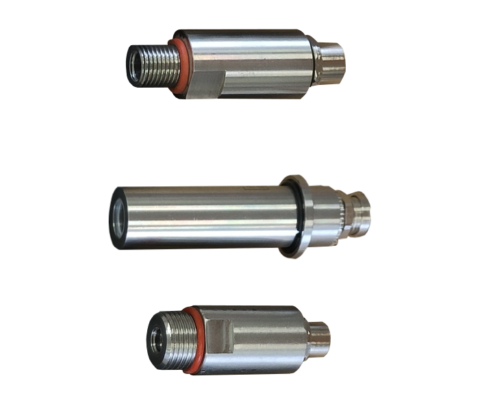

Standard UV-C SENSOR for UV systems installation with temperature detector and high quality UV-C probe for the wavelenght of 253,7 nm, in SS AISI 316 threaded male enclosure, suitable for general purpose application with low pressure lamps (vapour mercury and amalgam).

Certified O_Nörm and DVGW sensor for UV-C irradiation suitable for Hg medium pressure lamps and low pressure vapour mercury and amalgam lamps, in SS AISI 316 enclosure with different power supply voltage and outputs.

5  to  13 Vdc power supply

Temperature probe available

0 .. 5   to 0 .. 12 VDc output

SS AISI 316 enclosure

Standard or Certified
Standard Sensors
Certified Sensors
