AL40A

Ballast for 30W and 40W lamps with “instant start”

Plug-in box for direct connection to the mains socket

Red / Green Led for the monitoring of the lamp status

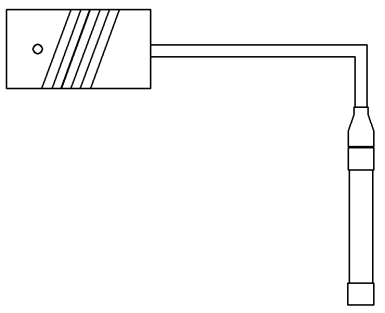

Cable of the lamp included

Internal microcontroller for the optimal management of the performance

Optional version with cable

Optional alarm beeper

  • Standard plug-in ballast SHUKO
  • Single management of the lamp
  • Power Supply voltage 230 Vac -  50 Hz
  • Highly efficient energy ballast ( > 95% )
  • Lamp cable 1,5 mt, standard
  • Management of the lamp status through a red / green led and an optional alarm beeper
  • CE mark and EMC compatibility following CEI EN 55022; EN 61000-3-2; EN 61000-4
  • Optional EU plug
  • Ballast with optional straight-thru cable, 1.5 mt

  • G36T5
  • UV028104
  • UV028102
  • 04UV81
  • SH0113
  • SH0110
  • GPH843T5
  • LTC40T5
